0.25

Minimum Wire Diameter (mm)

1.5

Maximum wire diameter (mm)

Maximum external spring diameter (mm)

150

Maximum wire feed speed (m/min)

Electric Power (kW)

1200

Depth (mm)

1100

Width (mm)

1700

Height (mm)

860

Net weight (kg)

Number of axes

Wire feed
Diameter X
Diameter Y
Diameter Z
Horizontal pitch
Vertical mandrel
Retracting mandrel
Winder Y
Winder ROT

Axes

Number of Servo Motors

1000

Maximum number of bends

1515 R30

Sizes

Configurations

Machine

Wire range (mm)

0.25 - 1.5

MT 15

0.4 - 1.7

MT 15 R

n/a - n/a

MT 30

Material and coiling ratio

A wide working range to meet every need and request

<Maximum efficiency in the production of right and left springs>

<AxeName>

<7 axes and the latest generation multi-axes numerical control will give you control on every micron>

Strengths

average production speed compared to similar machines

+100%

bends per minute in TOR-ROT configuration

1000

mechanical adjustments, all movements are carried out via numerical control

zero

Introducing SPC: The Advanced System for Precise Spring Measurements

The use of state-of-the-art digital cameras and advanced algorithms allows us to detect and measure the main geometric parameters of the produced springs. The values of free length and outer diameter are read with extreme precision even at high production speeds, and the process is kept within the set tolerances by automatically applying the calculated correction.

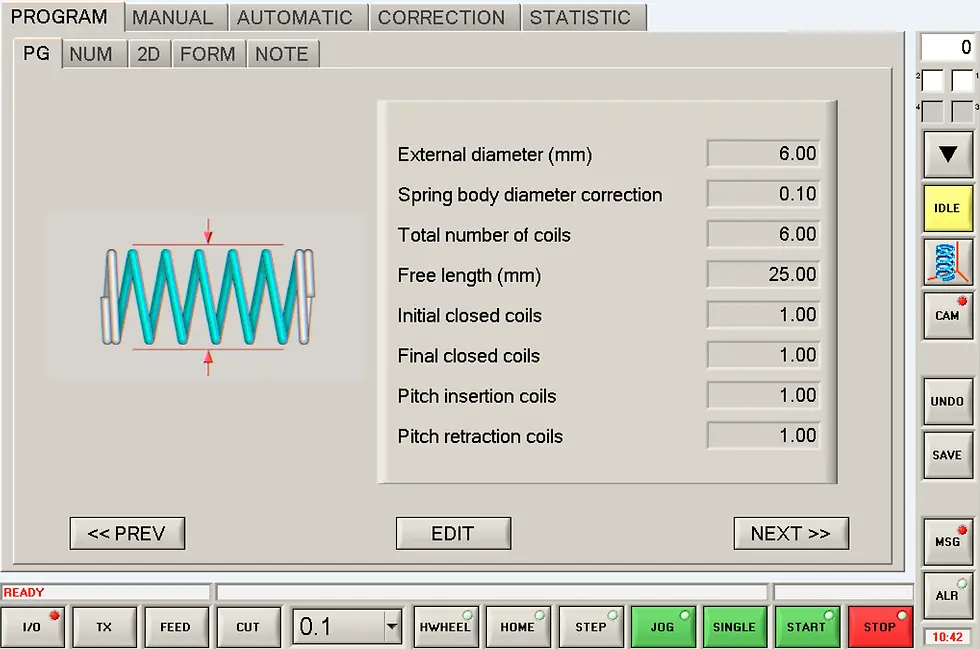

A user-friendly software with a large touchscreen display optimizes production and provides easy access to programming parameters for human-machine interaction (HMI).

Hundreds of customers around the world trust our advanced and reliable software and use it daily to optimize their spring production process

Maximizing spring production efficiency with our high-quality P models pay-offs

Pay-offs are a crucial component in spring production. Our pay-offs are designed to maximize efficiency and accuracy in the production process while ensuring maximum safety. They provide constant tension and control during coil unwinding, ensuring a uniform speed without wire deformation. With our technologically advanced pay-offs, you can achieve the high-quality results you need for your spring production.

Wire feed

Thanks to digitally adjustable pressure, it ensures precise and consistent wire feed, essential for the production of high-quality springs.

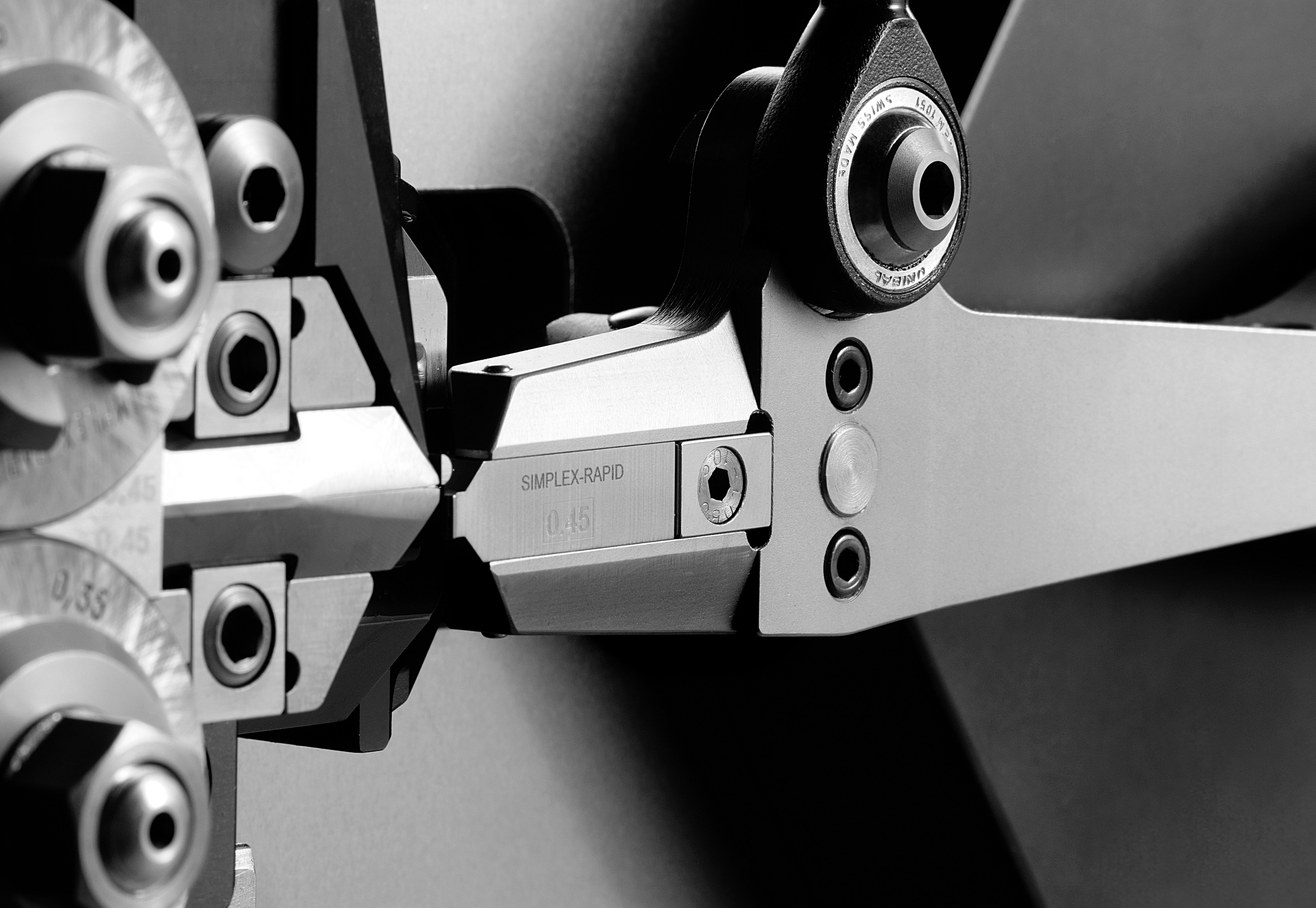

Diameter X

It is the movement in the horizontal direction of the winding finger.

Diameter Y

It is the movement in the vertical direction of the winding finger.

Diameter Z

It is the movement of the winding finger for precise control of the spring preload.

Horizontal pitch

It is tasked with creating the pitch between the spring coils through a movement parallel to the axis of the spring itself.

Vertical mandrel

It allows for an extremely effective cut. Complete programmability offers great flexibility in the production of torsion springs.

Retracting mandrel

The rapid retraction of the mandrel ensures high productivity in every situation. Great ease of machine setup thanks to the precise mandrel horizontal adjustment.

Winder Y

It offers high speed during the wire approach phase, optimizing production efficiency.

Winder ROT

It extends the range of possible springs to be made thanks to precise control of the axial bend.

9 axes and the latest generation multi-axis numerical control ensure precision to the micron

The ultimate solution to revolutionize your spring sorting process

With their innovative brushless motorized system, our chutes offer 100% of sorting reliability, providing you with unparalleled speed, performance, and controllable precision. Our advanced C model chutes come in a range of sizes (C0, C1, C2, C3), making them a versatile and essential accessory for any spring production line. Upgrade your sorting process with the C model chutes and experience a new level of efficiency and accuracy.
